Last updated: June 2026
If you've ever mixed up a pile of small components mid-disassembly, you know the feeling. These diagrams started as an internal reference — a reliable way to rebuild tools without having to rely on memory or a carefully laid out row of parts — but they're too useful not to share.
Browse the Diagrams
- Leatherman Arc
- Leatherman Wave+
- Leatherman Wave Alpha
- Leatherman Surge
- Leatherman Rebar
- Leatherman Super Tool 300
- Leatherman Sidekick
- Leatherman Wingman
- Leatherman Signal
What They Cover

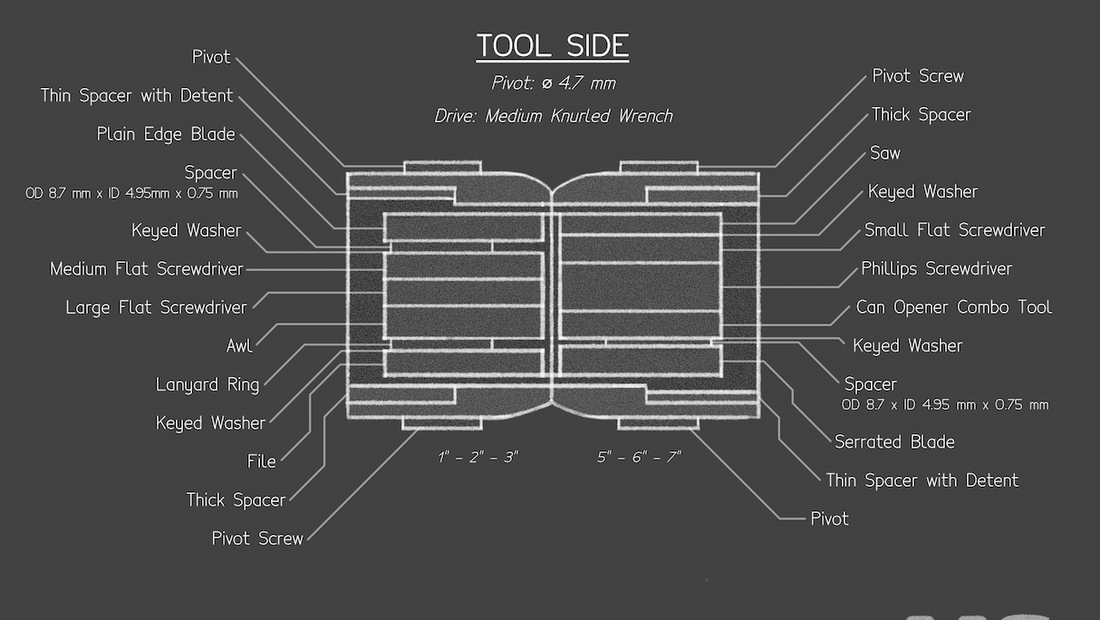

Full stack order for both handles, pivot and screw specifications, and callouts for washers and other hardware that's easy to lose track of. Everything you need to get your tool back together correctly, even if the parts are already in a pile.
More tools will be added over time. If you spot an error or have a correction, send it to Zach@MultiPartsStore.com. All diagrams are released under a Creative Commons license — free to use and share.
